Product Description:

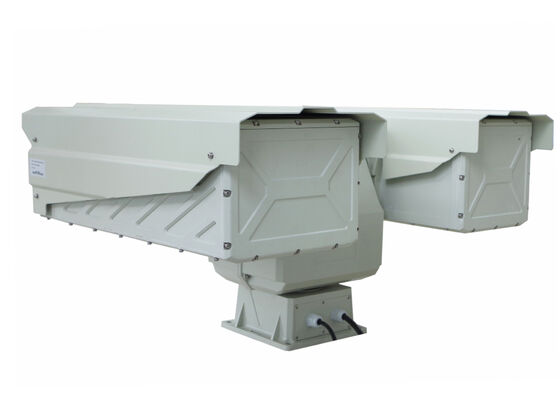

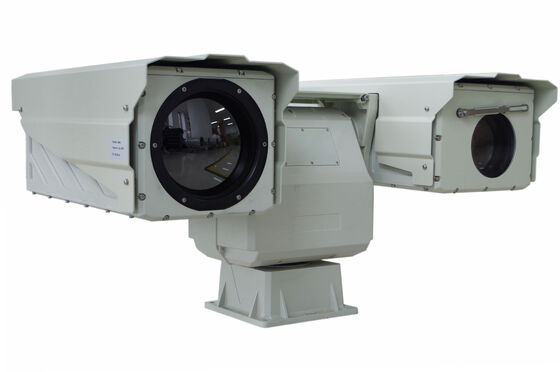

The Long Range Thermal Camera is an advanced PTZ thermal imaging camera designed to deliver exceptional performance in long-distance detection and surveillance applications. Equipped with a high-precision PTZ thermal sensor, this Long-Distance Thermal Camera offers unparalleled imaging capabilities, making it an ideal solution for security, border patrol, search and rescue, and industrial monitoring where clear thermal imaging over extended ranges is crucial.
HTVC Series Long Range Multi Sensor Thermal Camera is a series of camera specially designed for special purposes, the Camera adopts 2,000,000 visible camera and 384*288/640*512 /1280*1024 uncooled thermal camera with large caliber.
In combination with 360-degree PT, the camera is capable of conducting 24 hours real-time monitoring within 1km-20km.
With built-in technical grade control electronic system, the camera’s functions like zooming, focusing and video switch can be easily completed. The camera is IP66 rates,which ensures camera´s normal operation under tough weather conditions.
Technical Parameters:
| Model |
HP-HTVC6519-2150 |
| Detection |
Vehicle: 16km;Human:5.8km |
| Identification |
Vehicle:4.2km;Human: 1.6km |
| Thermal sensor |
VOx uncooled detector, 640*512 resolution for option
7.5um-14um spectral response, 45mk NETD
|
| Thermal lens |
38mm～190mm,
|
| 5X continuous zoom, auto focus |
| 64X digital zoom |
| Image process |
1. Image enhancement: SDE digital image enhancement technology to enhance image details
2. Pseudo-color polarity: 16 kinds of pseudo-color images, hot black / hot white two polarities
3. Image parameters: AGC automatic gain control, brightness, contrast
4. Electronic zoom: 2×, 4×, support global synchronous display
5. NUC correction: automatic / manual correction, background correction
|
| Enhancement |
1.Protection from strong light, Sunburn protection
2.Temperature correction: a thermalization design, the image sharpness is not affected by temperature
3. Scene mode: support multi-configuration scene, adapt to different environment application
|
| Intelligent Analysic |
1.Intrusion detection;
2.Fire Alarm/Hot Alarm
3. Ranging Scale;
4.Support Auto Track (together with software)
|
| Visible Camera sensor |
1/1.8'' CMOS |
| 0.0002lux super high sensitive color to B/W CCD |
| 2.1 MP resolution |
| Automatic ICR switch |
| H.264/MPEG4/MIPEG |
| 32Kbps~16Mbps,60Hz30 FPS |
| Visible Camera lens |
8mm～500mm
|
| 62X zoom |
| Auto focus |
| 2MP full HD resolution |
| Housing |
Material:High strength aluminum alloy shell,waterproof seal,To avoid the growth of mold and moisture generated |
| Structure:Integrated multi-window design |
| Surface coating:PTA three-resistance coating, Seawater corrosion resistance |
| Built-in thermostat, design of thermal equilibrium |
| Interface:Aviation waterproof plug |
| PTZ |
Load:50kg |
| Pan: 0~360°, Tilt: +45°～-45° |
| Speed:Pan: 0.01～30°/S, Tilt: 0.01～15°/S |
| Preset: 255, with Petrol/scan function, Azimuth real-time display, Zero correction function |
| Interface |
RJ45 Interface |
| Video format |
H.264, Dual video output |
| Protocol |
TCP/IP,HTTP,DHCP,DNS,DDNS,RTP ect. Other protocol |
| Support ONVIF2.0 |
| Pelco-P,Pelco-D,Baudrate 2400,4800,9600,19200 optional |
| Power supply |
AC24V/DC24V±10%,50Hz,150W,Standard AC220V->AC24V power supply |
| Environment |
- Operating temperature:-35℃～+60℃(-45℃ optional)；Storage temperature:-40℃(-50℃ optional)～+65℃
|
|
|
- Anti-lighting:built-in auto Fuse-protected device, Power 4000V,Signal 2000V
|
|
|
Company:
Hope Wish Photoelectronics Technology Co., Ltd. was established in Jinan high tech Zone and has a core R&D team for laser imaging, infrared thermal imaging detection and tracking technology research and product. Hope-Wish focuses on the research and development of night vision and multispectral imaging technology, by using a variety of image analysis and processing technology based on artificial intelligence to provide users with comprehensive optoelectronic system solutions in long-distance, high-definition, intelligent, multi-purpose, all-weather and complex environments.
Hope-Wish solutions cover the border/coastal defense, anti UAV, intelligent transportation, forest fire prevention, environmental protection, individual photoelectric equipment (handheld, helmet, gun aiming), marine and other industries. The products developed by the Hope-Wish, with their excellent performance, reliable quality and thoughtful after-sales service has been widely praised by users all over the world.
